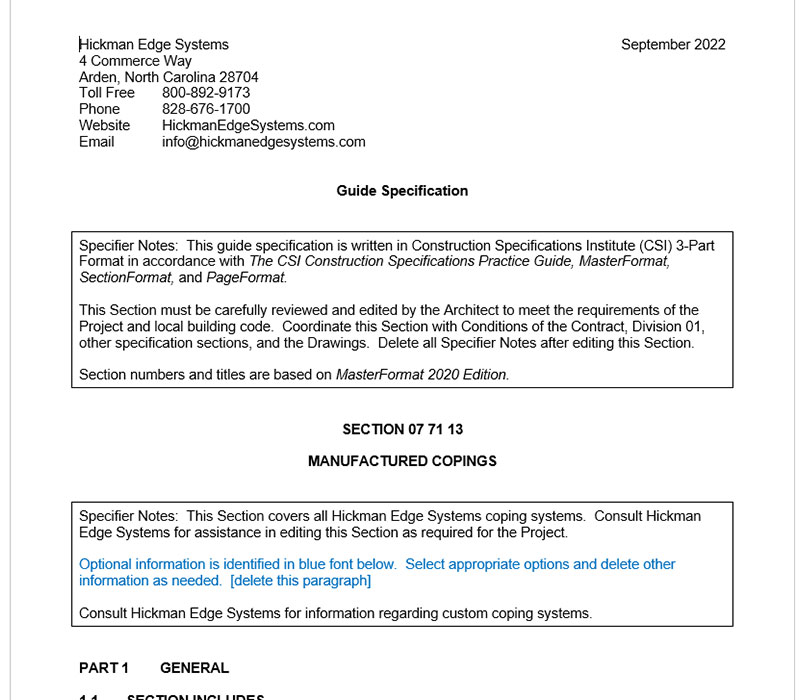

Division 7 CSI Specification Guide: Coping

PermaSnap Coping Order Specification

PermaSnap Coping Sell Sheet

Features and Benefits
Warranty
  •  20 Year, 120 MPH Wind Warranty
Details
  • - ANSI/SPRI/FM 4435/ES-1 Tested to comply with Interntional Building Code
  • - Snap-on design in 12'-0" lengths with no crimping or exposed fasteners make for quick installation and low labor costs.
  • - Pre-punched fastening holes ensure proper attachment to the building substrate.
  • - Factory fabricated miters and accessories provide a cleaner, more aesthetically pleasing appearance. This eliminates the need for field fabrication, providing time and labor savings.
  • - All fasteners and matched color concealed splice plates provided.
  • - PermaSnap can be used on walls from 6- to 24-inches (See Tested Max Below)
PermaSnap Technical Data
Wall Sizes (TESTED) Front/ Outside Face Size (TESTED) Back/Inside Face Size (TESTED) Cover Gauge Clip Gauge
6" to 16" 3.25" to 6" 3" to 4" 22 ga. and 24 ga. Steel & .040" .050", .063" Aluminum 20 ga.

Product Downloads

Wind Calculator

Please note that these calculations are based on U.S. measurements and roofing practices, and may not be sufficient or applicable for use outside of North America.
